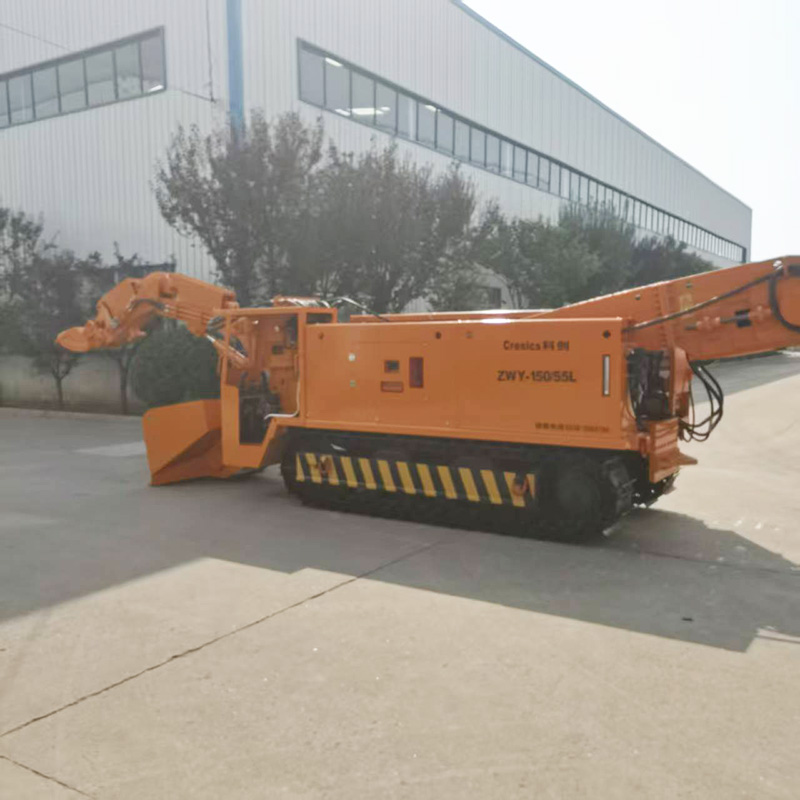

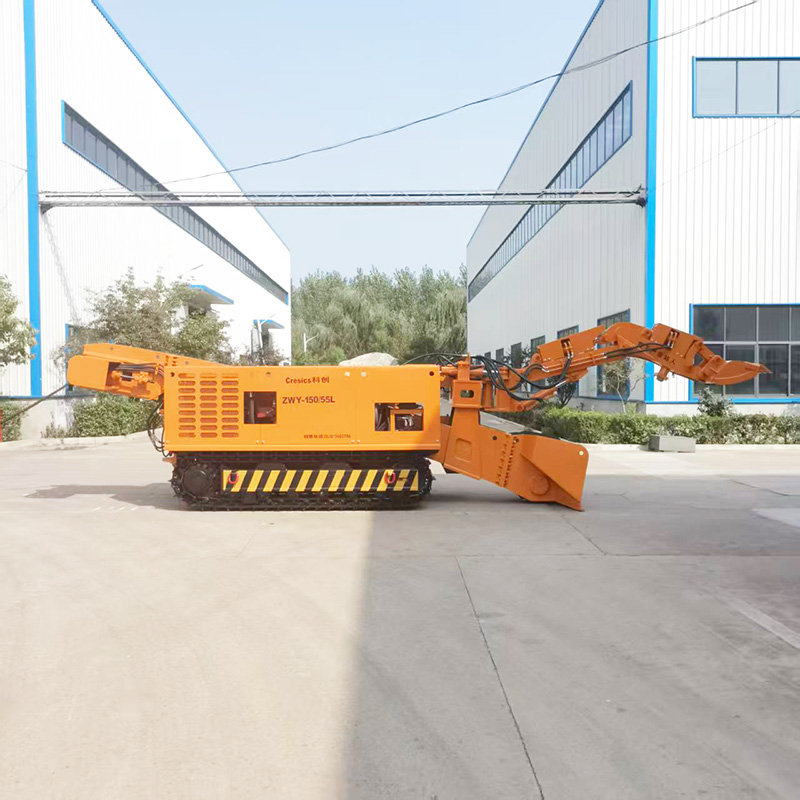

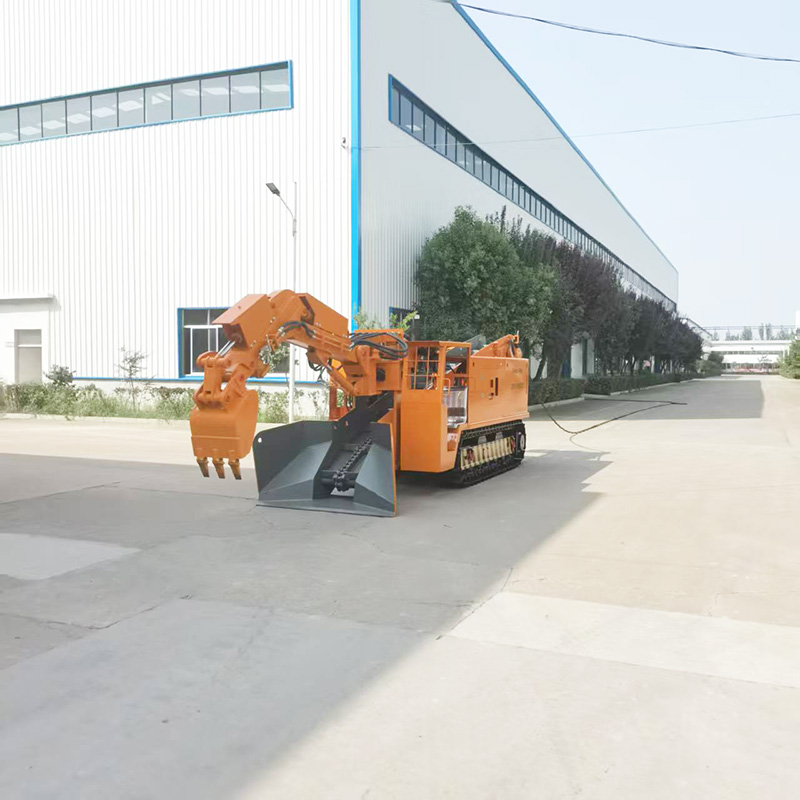

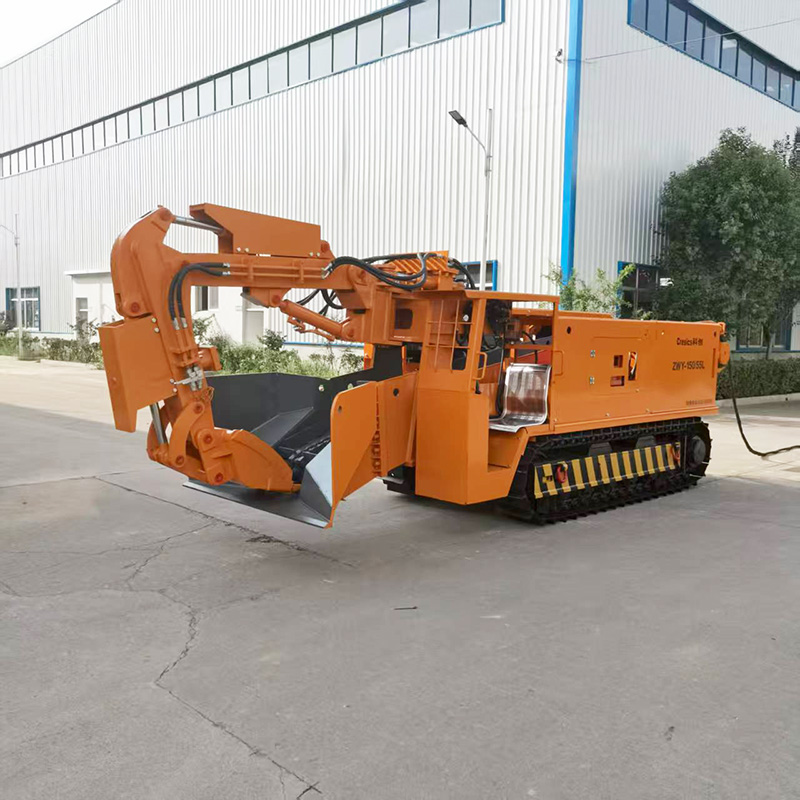

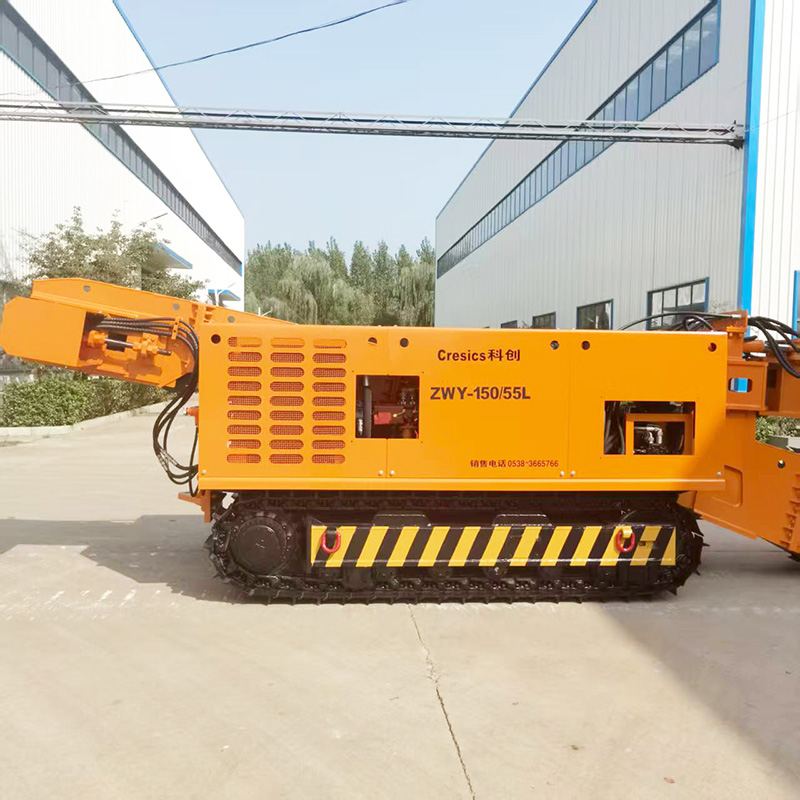

Tunnle Mucking Loader
1.Suitable for tunnels, mines, water conservancy and underground engineering.
2.The crawler structure is adaptable to muddy, rocky and soft underground environments.
3.The full-section scraping has no blind areas, reducing the need for manual cleaning.
4.It integrates crushing, transportation and loading functions, replacing manual labor and small loaders.

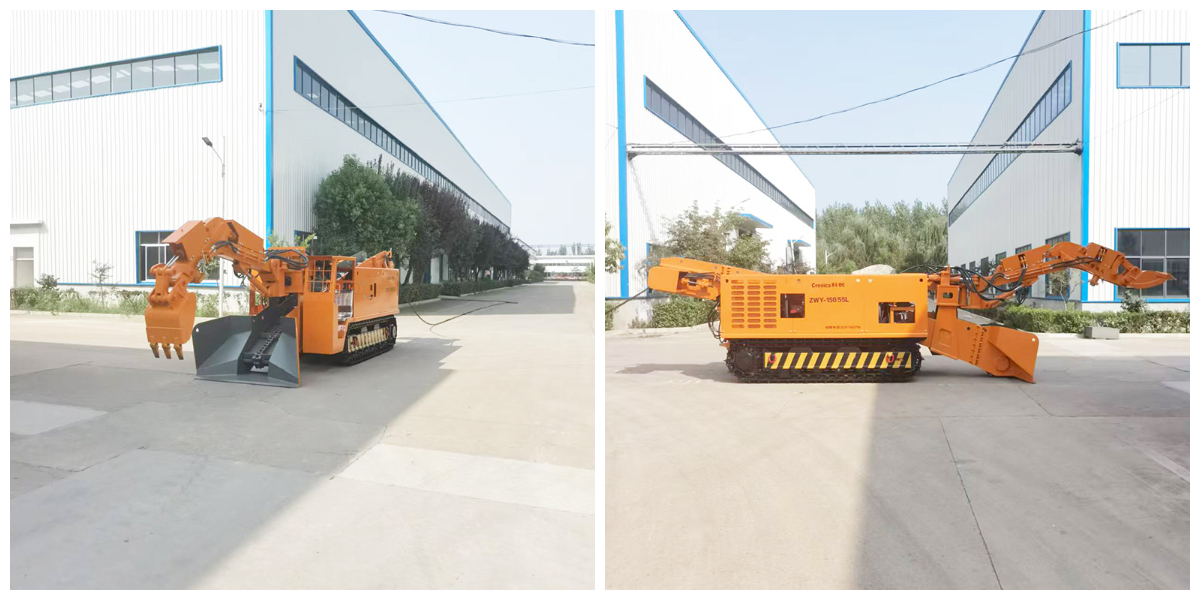

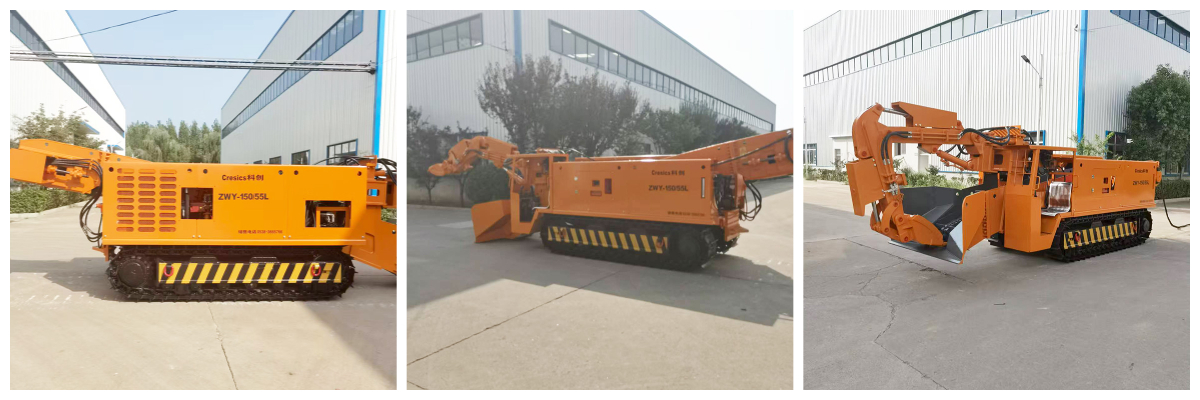

Product Details
Product Name: Tunnel Excavation Loader
Brand name: Cresics
Origin: Shandong, China
Model: ZWY
Certification: FOPS/ROPS
Application: Large, medium and small-sized tunnels and shafts
Personalized service: The equipment can be disassembled into smaller components and then loaded into containers.
Consultation Email: cresicsmining@gmail.com
Selection Suggestions
⭐For small sections (≤ 3m × 3m): Lightweight slag removal machine (ZWY-50/60), with a short body and low height, suitable for small and medium-sized tunnels / side tunnels.
⭐For medium sections (3m × 3m to 5m × 5m): Standard model (ZWY-80/100/120), the preferred choice for mainstream highways / railways / water conservancy tunnels.
⭐For large sections (＞ 5m × 5m): Long and wide arm models, combined with dump trucks for efficient slag removal.
Selection and Scenarios
●Small cross-section / Side tunnel / Frequent site changes: Select wheel-type slag removal machines (flexible, quick site transfer).
●Steep slope / Muddy / Long distance： Select crawler-type slag removal machines (stable， anti-slip).
Coal mine / Gas tunnel： Select explosion-proof type (with coal safety certification).

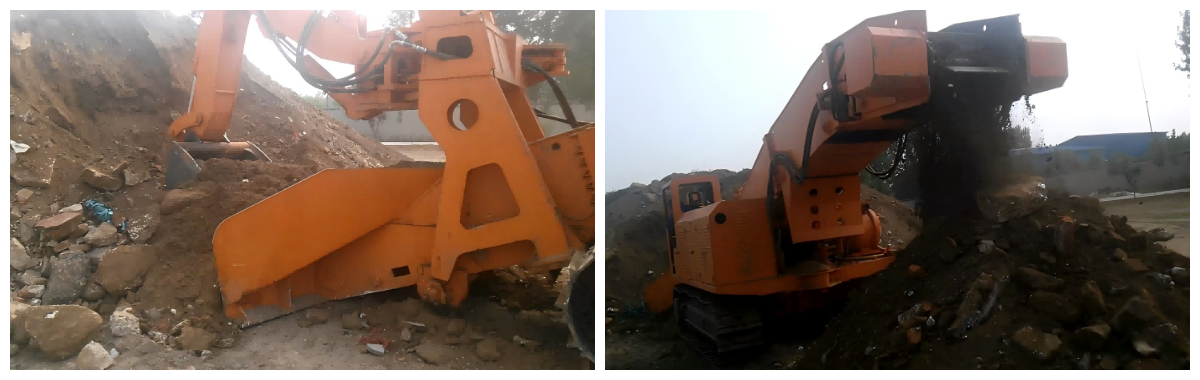

●Diversion tunnel / Water conservancy project： Prioritize waterproof / rust-proof models， suitable for humid environments.![]( "1772437278384321.jpg")
Parameters
Item | ZWY-80/30L | ZWY-80/37L | ZWY-80/45L | ZWY-100/45L | ZWY-120/65L | ZWY-150/55L | ZWY-180/75L | ZWY-220/75L | |
Main Technical Parameters | |||||||||
Applicable Section (Width × Height) m | 3.2×2.2 | 3.5×2.5 | 4×2.5 | 4.8×3.2 | 5.4×4.0 | 5.8×4.5 | 6.2×5 | 7.5×5.5 | |
Applicable Axis Width* | (-16° ~ +16°) | (-20° ~ +20°) | ( -32° ~ +32°) | ||||||
Loading Capacity m³/h | 80 | 100 | 120 | 150 | 180 | 220 | |||
Control Mode | Hydraulic Pilot Control | ||||||||
Main Motor Power KW | 30 | 37 | 45 | 55 | 75 | ||||
Digging Width mm | 3200 | 3500 | 4000 | 4600 | 5400 | 5800 | 6200 | 7000 | |
Digging Distance mm | 1500 | 1600 | 1800 | 2150 | 2500 | 3300 | |||
Digging Height mm | 1800 | 2200 | 3000 | 3500 | 3800 | 4000 | 4300 | ||
Digging Depth mm | 400 | 500 | 800 | 990 | 1050 | ||||
Unloading Height (Adjustable) mm | 1200 | 1450 | 2000 | ||||||
Unloading Distance (Adjustable) mm | 1150 | ||||||||
Max. Rotation Angle* | ±36° | ±45° | ±55° | ||||||
Max. Transport Material Size mm | < φ500 | < φ580 | < φ625 | < φ780 | |||||
Boom Structure | Single Boom | Single Boom (or Double Boom) | Double Boom | ||||||
Hoisting Speed m/min | 44 | ||||||||
Track Gauge (Adjustable) mm | 890 | 890 | 900 | 1110 | 1190 | 1400 | |||
Travel Speed m/s | 0.5 | ||||||||
Ground Clearance mm | 300 | ||||||||
Min. Turning Radius m | ≥ 5 | ≥ 7 | ≥ 8 | ||||||
Ground Pressure MPa | ≤ 0.1 | ||||||||
Rated Working Pressure MPa | 23 | ||||||||
Max. Bucket Size | Length mm | 3350 | 4200 | ||||||
Width mm | 850 | 900 | 1000 | 1100 | 1200 | ||||
Height mm | 1200 | 1400 | 1500 | 1650 | |||||
Max. Bucket Weight Kg | 2300 | 3000 | 3500 | ||||||
Max. Overall Dimensions (Working) | Length mm | 6000 | 6500 | 6800 | 7000 | 7500 | 8800 | ||
Width mm | 1750 | 1800 | 2200 | 2350 | 2640 | ||||
Height mm | 1750 | 1750 | 1800 | 2900 | 3250 | 3600 | 3800 | 4200 | |
Machine Weight Kg | 7600 | 8000 | 8200 | 11200 | 13800 | 15200 | 17800 | 20000 | |
